Details:
Welcome to our product page for the Sanitary Three-piece Butterfly Valve, core fluid control component for hygienic processing lines with detachable three-piece design. Food-grade 304/316L stainless steel, FDA-certified seals, Ra 0.4-0.8μm polish. Manual/pneumatic actuation, DN10-DN300, 0-10 Bar. For food, beverage, pharmaceutical, cosmetic and chemical industries.
Send Inquiry
Add To Inquiry
Download
Description
Technical Parameters

Product Introduction

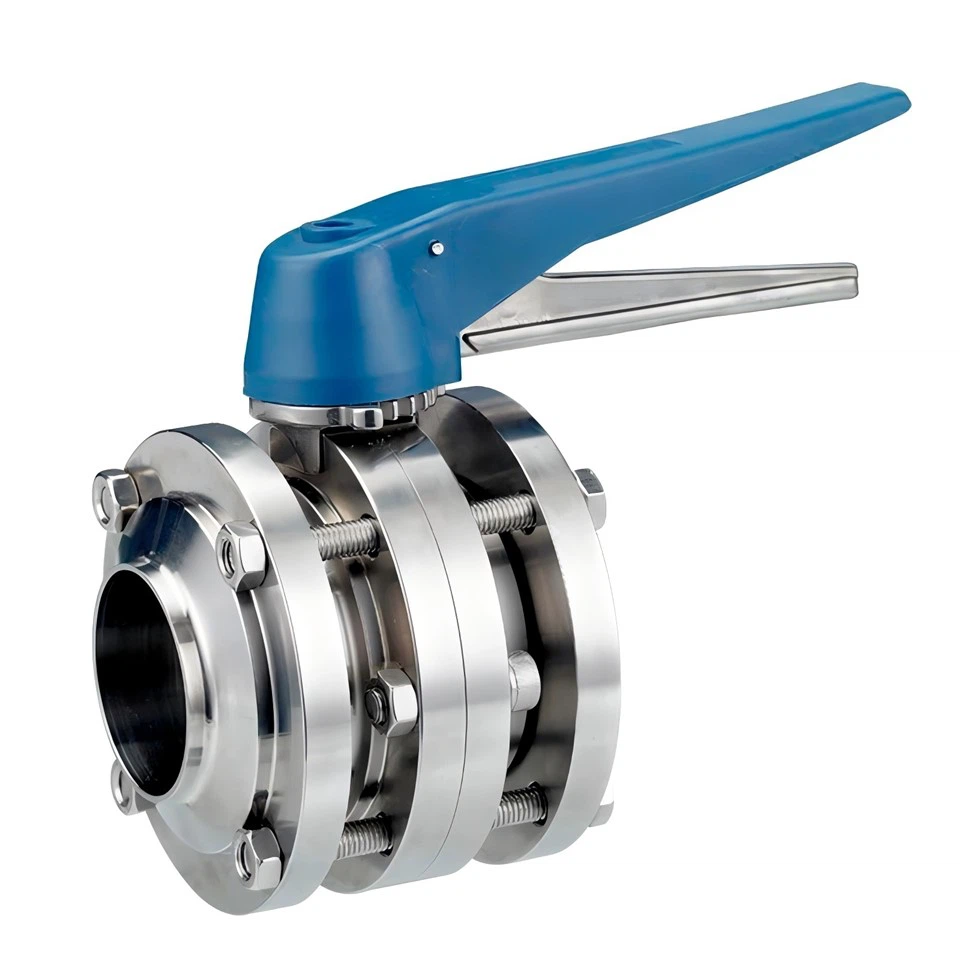

Our Sanitary Three-piece Butterfly Valve is engineered to regulate and isolate fluid flow with high precision while maintaining the highest hygiene standards. The detachable three-piece structure enables easy disassembly, cleaning and maintenance, eliminating dead corners that harbor contaminants. Available in manual and pneumatic operation modes, it is compatible with a wide range of media including water, dairy products, beverages, pharmaceutical liquids, cosmetics and corrosive chemicals, providing versatile solutions for various hygienic processing scenarios.



Product Features



1.Superior Hygiene Performance: Body and disc made of food-grade AISI 304/316L stainless steel, with high-precision Ra 0.4-0.8μm polishing on both surfaces. No dead corners or media accumulation areas, preventing bacterial growth and ensuring fluid purity, fully compliant with FDA 21 CFR 177.2600.

2.Detachable Three-piece Design: Valve body divided into three detachable parts, allowing quick disassembly without removing the entire pipeline. Simplifies cleaning (CIP/SIP compatible), maintenance and internal component replacement, saving production line time and labor costs.

3.Excellent Sealing & Corrosion Resistance: Equipped with FDA-certified sealing gaskets (EPDM standard, optional Silicone, FKM, PTFE), resistant to high temperature, acid, alkali and corrosive media. Precision-machined disc and seat ensure tight sealing, zero leakage and long service life.

4.Flexible Operation & Wide Compatibility: Available in manual (pull handle, multi-position handle) and pneumatic (single/double acting) operation modes, interchangeable actuators. Supports tri-clamp, butt-weld, threaded connections, compatible with DIN, 3A, SMS, ISO/IDF, RJT standards.

5.Precision Machining & Reliable Quality: Full CNC one-time machining ensures high dimensional accuracy and stable performance. 100% pressure tested before shipment, with service life comparable to imported products and 18-month warranty for normal use.

6.Cost-Effective & Space-Saving: 75% lighter than traditional ball valves, reducing piping system strain and saving space in crowded production areas. 30-50% more economical for 2"+ diameters, reducing procurement costs while maintaining high performance.



Working Principle



The Sanitary Three-piece Butterfly Valve operates by rotating the valve disc around the stem axis to regulate or shut off fluid flow. Turning the handle or actuator rotates the disc 90° from fully open to fully closed, enabling proportional flow regulation or tight shutoff. The three-piece split body design allows the valve to be disassembled for cleaning, seal replacement or maintenance without removing it from the pipeline, fully supporting CIP and SIP cleaning protocols. The hygienic polished surface eliminates dead zones and residue buildup, maintaining high purity of process media.



Application Scenarios



Food & Beverage Industry: Contamination-free fluid transfer and mixing control for dairy products, fruit juice, beer, wine, soft drinks, meat processing and food additives.

Pharmaceutical Industry: Fluid control for pharmaceutical liquids, vaccines, blood products, sterile production lines and bioreactors, meeting GMP standards and ensuring medical product purity.

Cosmetic & Personal Care Industry: Flow control for cosmetics, skin care products and toiletries, preventing cross-contamination and maintaining product quality.

Chemical & Biochemical Industry: Safe fluid control for corrosive chemicals, clean steam and biochemical reagents, with corrosion-resistant construction for harsh process conditions.

Other Hygienic Applications: Flow control for purified water systems, sterile air pipelines and other scenarios requiring high hygiene standards and efficient flow control.



Quality Assurance



Every Sanitary Three-piece Butterfly Valve undergoes rigorous quality control from raw material to finished product. All stainless steel materials come with food-grade certified composition; all seals are FDA-approved. Each valve passes 100% pressure testing before shipment to ensure zero leakage. Manufactured strictly per FDA, 3A, ISO 9001, PED standards with full material traceability. 18-month warranty.



FAQ



Q1: What is a sanitary three-piece butterfly valve, and what is its core advantage?

A: It is a hygienic fluid control valve with detachable three-piece body structure, used for flow regulation and isolation in sanitary processing lines. Its core advantage is the split three-piece design that enables quick disassembly for cleaning and maintenance without removing the entire valve from the pipeline, ideal for frequent sanitation scenarios.



Q2: What is the sanitary performance, and what surface finish does it have?

A: Body and disc made of food-grade 304/316L stainless steel. Both inner and outer surfaces polished to Ra 0.4-0.8μm, with no dead corners or media accumulation areas. Fully compliant with FDA 21 CFR 177.2600 standards, preventing bacterial growth and ensuring fluid purity.



Q3: What seal materials are available, and what temperature range?

A: Standard seal: EPDM (-20℃~120℃). Optional seals: Silicone (-50℃~180℃), FKM (-30℃~230℃), PTFE. All seals are FDA-certified, resistant to high temperature, acid, alkali and various corrosive media.



Q4: What operation modes and connection types are available?

A: Operation modes: manual (pull handle, multi-position handle) and pneumatic (single-acting/double-acting), interchangeable actuators. Connection types: tri-clamp, butt-weld, threaded, customizable, compatible with DIN, 3A, SMS, ISO/IDF, RJT standards.



Q5: What standards and certifications does it comply with?

A: Complies with FDA 21 CFR 177.2600, 3A, ISO 9001, PED 2014/68/EU, DIN, SMS, ISO/IDF, RJT international standards. 100% pressure tested before shipment, with 18-month warranty for normal use.



Hot Tags: Sanitary Three-piece Butterfly Valve | Hygienic 3-Piece Flow Control Valve, China Sanitary Three-piece Butterfly Valve | Hygienic 3-Piece Flow Control Valve manufacturers, suppliers, factory, sanitary 3 way valve, sanitary sample valve stainless international company, sanitary motorized ball valve, 1 2 tri clamp ball valve, factory 2 sanitary ball valve, Thankful Material 2 tri clamp ball valve

Item Specification
Valve Type Sanitary Three-piece Butterfly Valve
Body & Disc Material AISI 304/316L Stainless Steel
Seal Material EPDM (standard); Silicone, FKM/Viton, PTFE (optional), FDA Certified
Size Range DN 10 - DN 300 (1/2" - 12")
Working Pressure 0-10 Bar (145 PSI); customizable for higher pressure
Working Temperature EPDM: -20℃~120℃; Silicone: -50℃~180℃; FKM: -30℃~230℃
Connection Type Tri-clamp, Butt-weld, Threaded (customizable)
Operation Mode Manual (Pull Handle / Multi-position Handle); Pneumatic (Single/Double Acting)
Surface Finish Inner: Ra 0.4-0.8μm; Outer: Ra 0.4-0.8μm (Electropolishing optional)
Standards & Certifications FDA 21 CFR 177.2600, 3A, ISO 9001, PED 2014/68/EU, DIN, SMS, ISO/IDF, RJT
Testing 100% Pressure Test Before Shipment
Warranty 18 Months
