Details:
Welcome to our product page for the Forged Steel Low‑temperature Globe Valve, a high‑strength cryogenic isolation & throttling valve built from precision‑forged steel for ultra‑low‑temperature working conditions down to ‑196℃. It adopts OS&Y outside‑screw‑and‑yoke and extended long‑neck bonnet design, low‑temperature‑resistant lip‑type / metal‑to‑metal self‑energized spring‑assisted sealing. Available in DN6‑DN300 (NPS 1/4"‑12"), Class150‑2500 (PN2.5‑420). Supports manual / pneumatic / electric / hydraulic actuation with flange, threaded, socket‑weld and butt‑weld ends. For LNG, liquid oxygen / nitrogen, petrochemical, aerospace, industrial‑gas systems. Complies with API 602, ASME B16.34, ISO 15761, API 598, ISO15848 fugitive‑emission standards.
Send Inquiry
Add To Inquiry
Download
Description
Technical Parameters

Product Introduction

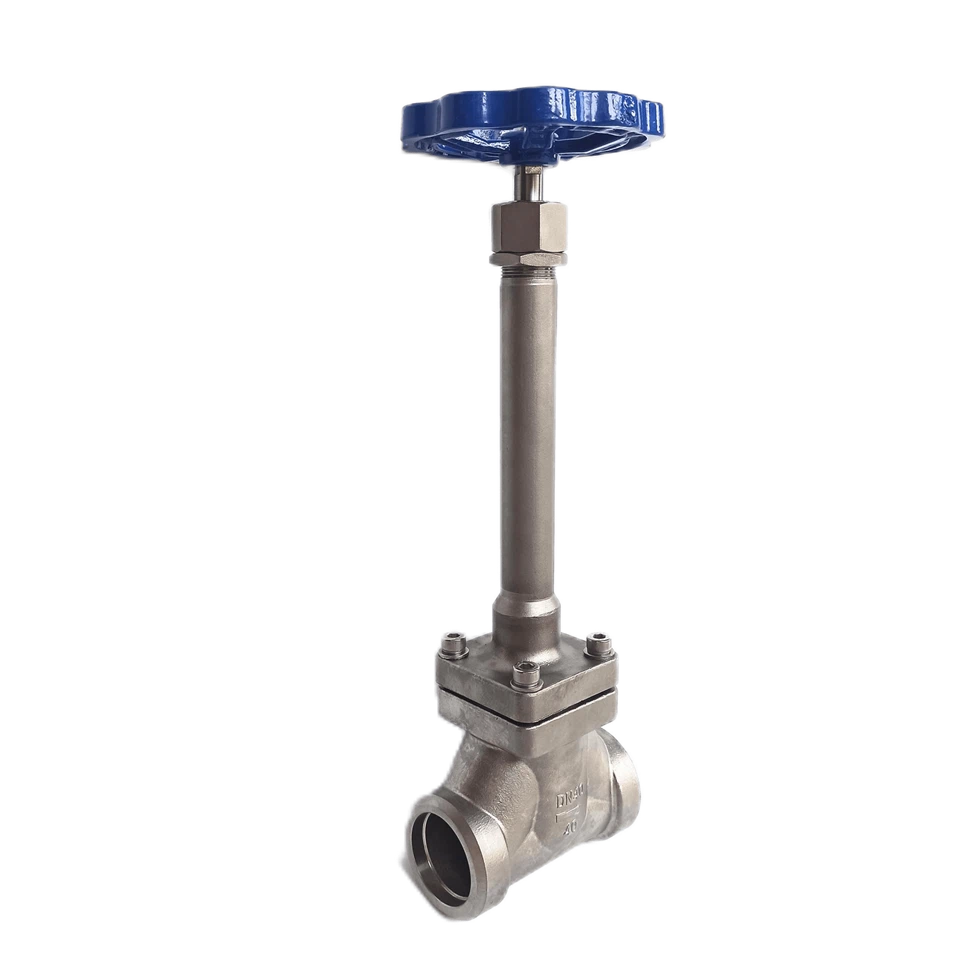

Our Forged Steel Low‑temperature Globe Valve is a heavy‑duty cryogenic globe valve manufactured by precision forging. Compared with cast‑steel valves, the forged body eliminates internal casting defects and delivers higher density, mechanical strength and impact toughness, suitable for severe cyclic temperature‑shock conditions in cryogenic service. It features extended long‑neck bonnet to keep stuffing box away from ultra‑cold media and prevent stem freeze‑up. OS&Y structure isolates stem threads from process fluid. Self‑energized spring‑assisted lip‑seal / metal hard‑seat achieves reliable tight shut‑off at ‑196℃. Pressure‑containing components undergo liquid‑nitrogen stabilization treatment to release residual stress. Multiple material grades, sealing options and actuator selections are offered for LNG, LOX, LIN and other liquefied‑gas media, serving as robust isolation & throttling equipment for cryogenic storage, transportation and process pipelines.



Product Features



1.Precision‑Forged High‑Strength Body: Body, bonnet and stem adopt high‑quality forged grades: A105 carbon steel, A350 LF2/LF3 low‑temperature steel, A182 F304/F316/F316L alloy steel. Forging eliminates casting porosity and inclusions; pressure‑containing parts receive liquid‑nitrogen cryo‑stabilization treatment to eliminate microstructure residual stress, resisting thermal‑shock deformation under frequent temperature swings.

2.Long‑neck Extended Bonnet + OS&Y Structure: Extended bonnet creates thermal stand‑off distance, maintaining the stuffing‑box packing near ambient temperature to avoid seal shrinkage / stem freeze‑lock. OS&Y outside‑screw‑and‑yoke design keeps stem threads outside pressure boundary, protecting threads from cryogenic media corrosion; stem surface receives hard‑chrome plating / nitriding anti‑galling treatment for smooth low‑torque operation.

3.Self‑energized Zero‑leakage Cryogenic Sealing: Lip‑type or metal‑to‑metal mating with spring‑energized seal assembly; cryo‑compatible PTFE / Kel‑F / graphite seals retain elasticity at ultra‑low temperature. Inconel alloy spring provides constant pre‑load compensating for thermal contraction, achieving reliable tight shut‑off and fugitive‑emission performance per ISO 15848. Optional reverse‑seal structure enhances high‑pressure sealing safety.

4.Fire‑safe & Hazardous‑area Adaptation: Built‑in fire‑safe construction; explosion‑proof actuators optional for flammable cryogen service such as LNG. Handles large pressure‑differential working conditions, suitable for continuous long‑term cryogenic operation.

5.Rich Configurations & Flexible Connections: Multiple drive choices: manual handwheel, pneumatic, electric and hydraulic. End connections include RF/RTJ flange, NPT threaded, socket weld and butt weld, complying with ASME / DIN / JIS dimensional standards. NACE MR‑0175 anti‑sulfur option is available for sour cryogenic process media.

6.Low‑maintenance Long Service Life: Robust forged construction reduces wear and failure risk. Replaceable trim and seal components can be serviced inline, cutting downtime and total‑ownership‑cost.



Working Principle



Forging Steel Low Temperature Globe Valve: rotate handwheel/actuator, OS&Y stem rotates, plug moves linearly up/down. Cut-off: plug fully seats - zero-leakage (lip/metal seal + PTFE/Kel-F/graphite, self-energized Inconel spring, API 598). Flow control: plug partially lifts - area changes, regulation. Extended bonnet keeps stuffing box ambient - prevents stem freeze, avoids seal shrinkage. Precision forged body A105/LF2/F304/F316/F11/F22 - density/strength, no defects. Stem hard chrome/nitrided, low torque. Fire-safe. DN6–300, PN2.5–420, -196~+150℃. Manual/pneumatic/electric/hydraulic. Flange/thread/SW/BW. API 602, ASME B16.34, ISO 15761, BS 5352, API 598. LNG, LOX/LIN/LAR, petrochemical, aerospace.



Application Scenarios



LNG Industry: LNG storage tanks, tank truck transfer pipelines, LNG refueling stations, liquefaction and receiving terminal isolation and throttling service.

Petrochemical & Chemical: Low‑temperature reaction processes, refrigerant circulation lines, air‑separation equipment, liquid‑gas separation units.

Industrial Gas: Liquid‑oxygen, liquid‑nitrogen, liquid‑argon storage & transportation pipelines.

Aerospace: Rocket cryogenic fuel delivery systems, liquid‑hydrogen / liquid‑oxygen process control.

Power & Refrigeration: Power‑plant low‑temperature auxiliary loops, cryogenic refrigeration and freeze‑drying equipment.

Pharmaceutical & Food: Low‑temperature freezing, cryo‑storage systems.



Quality Assurance



Every Forging Steel Low Temperature Globe Valve: Material - forged A105, LF2, F304/F316/F11/F22, stem Ni/SS, Charpy, MTR 3.1. Forging - high-pressure, UT. Seal - PTFE/Kel-F/graphite/metal, lip/metal, Inconel spring, API 598. Pressure - 100% shell 1.5×PN, seat 1.1×PN, cryogenic leak, ISO 15848. Functional - torque, stroke, OS&Y, fire-safe API 607. Connection - flange, thread, SW, BW. Surface - SS pickled, CS paint. Marking - permanent material/size/pressure/temp/serial. Standards: API 602, ASME B16.34, ISO 15761, BS 5352. Cert: ISO 9001, CE, NACE opt. Batch traceable. Lead: 15 working days, 1 month peak. Warranty.



FAQ



Q1: What distinguishes forged‑steel low‑temperature globe valves from cast cryogenic globe valves?

A: Forged‑steel versions use high‑pressure hot forging process, removing casting‑related defects (porosity, shrinkage cavities). Higher material density, superior low‑temperature impact toughness and better resistance to thermal‑shock cyclic temperature change. More suitable for high‑pressure critical cryogenic small‑bore pipelines, while cast cryogenic globe valves are more common for large‑diameter sizes.



Q2: What benefits do long‑neck bonnet and OS&Y stem bring for cryogenic service?

A: Long‑neck extended bonnet thermally isolates stuffing‑box packing from ultra‑cold medium to prevent packing cold‑shrinkage leakage and stem freeze‑lock. OS&Y moves threads outside the pressure boundary, protecting threads from cryogenic / corrosive media and enabling visual stem‑position observation.



Q3: What are available sizes, pressure, temperature and material options?

A: Sizes DN6‑DN300(NPS1/4"‑12"); Pressure Class150‑2500 (PN2.5‑420); Operating temperature ‑196℃ ~ +150℃. Body materials: A105 forged carbon steel, A350 LF2/LF3 low‑temp steel, A182‑F304/F316/F316L stainless steel; seal materials: PTFE, Kel‑F, graphite, metal hard‑seat. NACE MR0175 anti‑sulfur optional.



Q4: How does the spring‑energized self‑energized sealing perform under ultra‑low‑temperature?

A: Inconel alloy spring maintains constant pre‑load force. The seal element compensates thermal contraction at‑196℃, avoiding gap opening caused by different material thermal expansion coefficients, achieving reliable shut‑off and fugitive‑emission performance for cryogenic fluids.



Q5: Standards, certification, warranty and lead‑time?

A: Design standards: API 602, ASME B16.34, ISO15761, BS5352; test: API598, ISO15848. Certifications: ISO9001, ISO14001, ISO18001, CE, optional NACE MR0175. Warranty: 12‑18 months ex‑works. Standard lead‑time: 25‑40 working‑days; custom configurations 40‑60 days. MOQ 1 piece, sample orders acceptable.



Hot Tags: Forged Steel Low‑temperature Globe Valve | OS&Y Extended‑bonnet Cryogenic Isolation Valve, China Forged Steel Low‑temperature Globe Valve | OS&Y Extended‑bonnet Cryogenic Isolation Valve manufacturers, suppliers, factory, suppliers globe non return valve, cheap globe valve 3 inch, top company angle globe valve, automatic globe valve global company, globe valve dn40, globe valve for steam line

Item Specification
Product Name Forged Steel Low‑temperature Globe Valve
Valve Type OS&Y rising‑stem globe valve; long‑neck extended bonnet; spring‑energized cryogenic seal
Nominal Diameter DN6‑DN300 (NPS 1/4"‑12")
Nominal Pressure Class 150‑2500 (PN2.5‑420 MPa)
Operating Temperature -196℃ ~ +150℃
Body Material A105, A350 LF2/LF3, A182 F304/F316/F316L alloy forged steel
Seal Material PTFE, Kel‑F, Graphite, Metal hard‑seat; Inconel energizing spring
Drive Mode Manual handwheel, Pneumatic, Electric, Hydraulic
End Connection Flange(RF/RTJ), Thread(NPT), Socket‑weld, Butt‑weld
Design Standard API 602, ASME B16.34, ISO15761, BS5352, DIN, JIS
Test Standard API 598, ISO 15848 fugitive‑emission
Certification ISO9001, ISO14001, ISO18001, CE; NACE MR‑0175 optional
Warranty 12‑18 months from shipment
